OSO Level

WiFi Refrigerator Scale

Physical Device Design

Posted by Justin Bernard on December 20, 2013

Comments

Justin Bernard on December 20, 2013:

illustrator file for paths
http://cloud.fleeangrybear.com/3y3x3J0t3B0w

Justin Bernard on December 20, 2013:


Justin Bernard on December 20, 2013:


revised schematic with interface/comp area addition

Justin Bernard on December 20, 2013:


revised schematic file (lets keep a working schematic, so if you make changes always reupload so we can add to same file

http://cloud.fleeangrybear.com/223N0Y0O2846

Justin Bernard on December 20, 2013:


not sure how to model/explain this best, but want the 'interface' area to be a smooth transition from the rest of the plate, not a wedge type shape, but think of it more like the contour of an airplane wing

Justin Bernard on December 20, 2013:


side profile of interface integration


files:
http://cloud.fleeangrybear.com/3H0x092f3n3O

Taylor Bernard on December 20, 2013:

right on. i'm digging this shape a lot. exactly what i was imagining.

Justin Bernard on December 20, 2013:

it's what i do.  make good shapes.

Justin Bernard on December 20, 2013:

once you get shape laid out, see if you can make the main body 'flexible', ie something that you can pick a corner up to show its pliable

Taylor Bernard on December 20, 2013:

Justin Bernard on December 20, 2013:

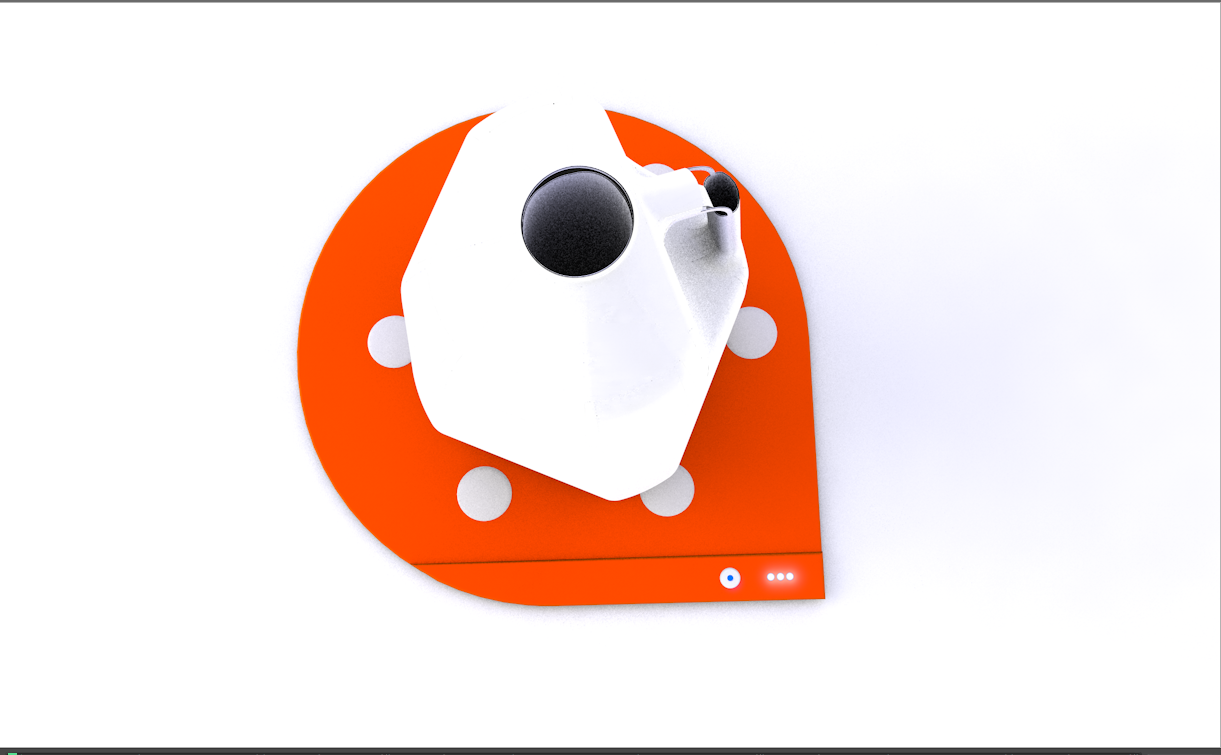

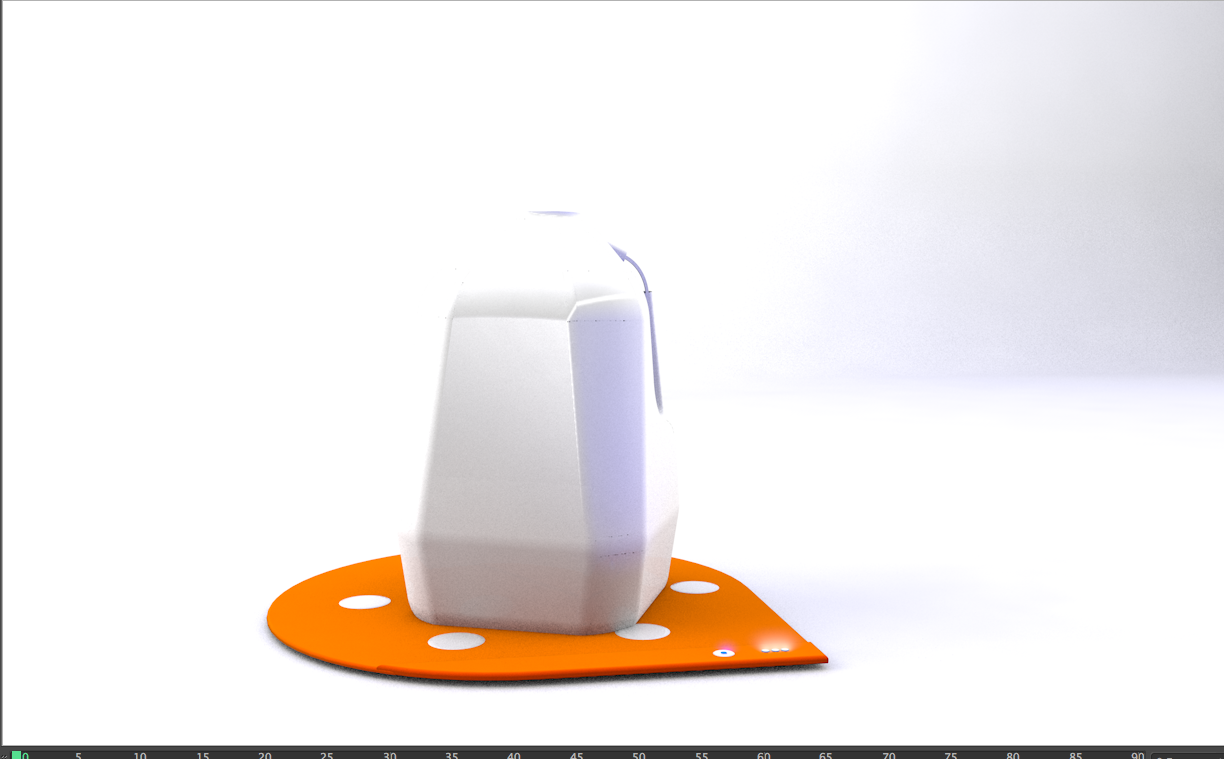

looking really good

whats up on teh scale, its waaaay bigger than needs to be in relation to milk jug, was thinking that jug would cover up like 90% of it when sitting on it

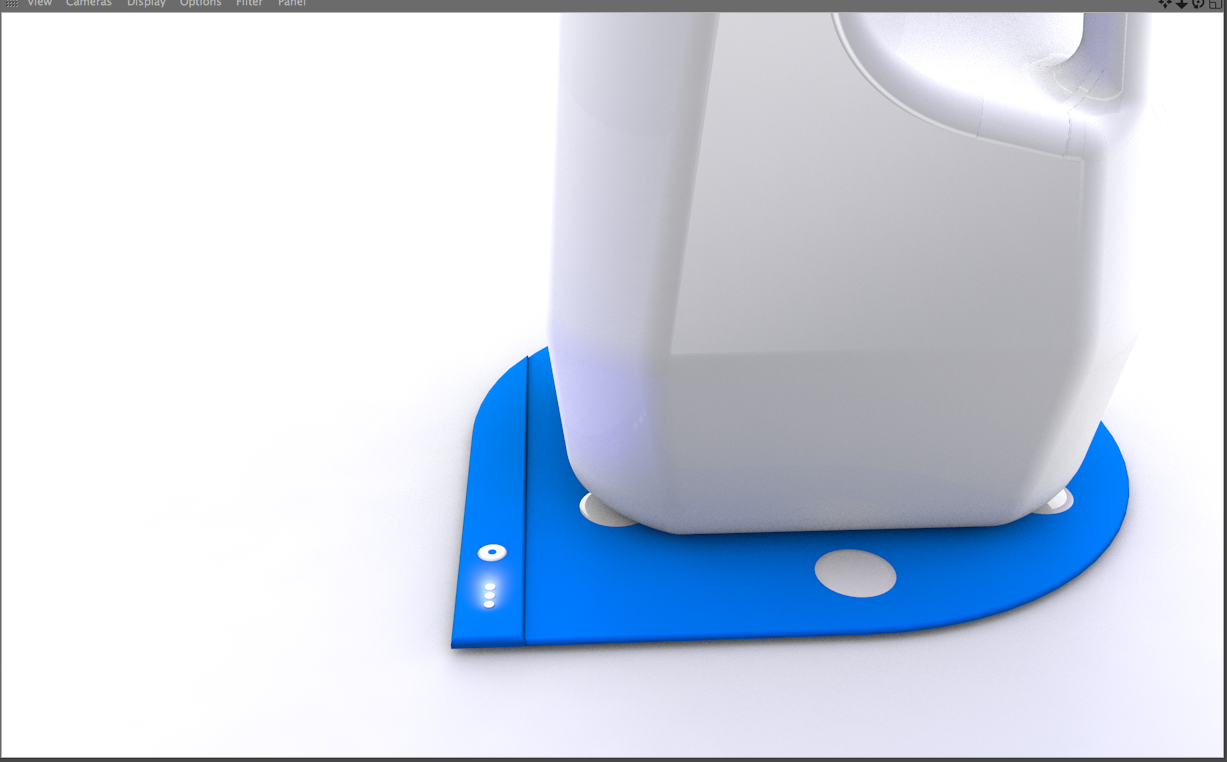

also can you change the rubber color to blue like in the doc above, same material?

Justin Bernard on December 20, 2013:

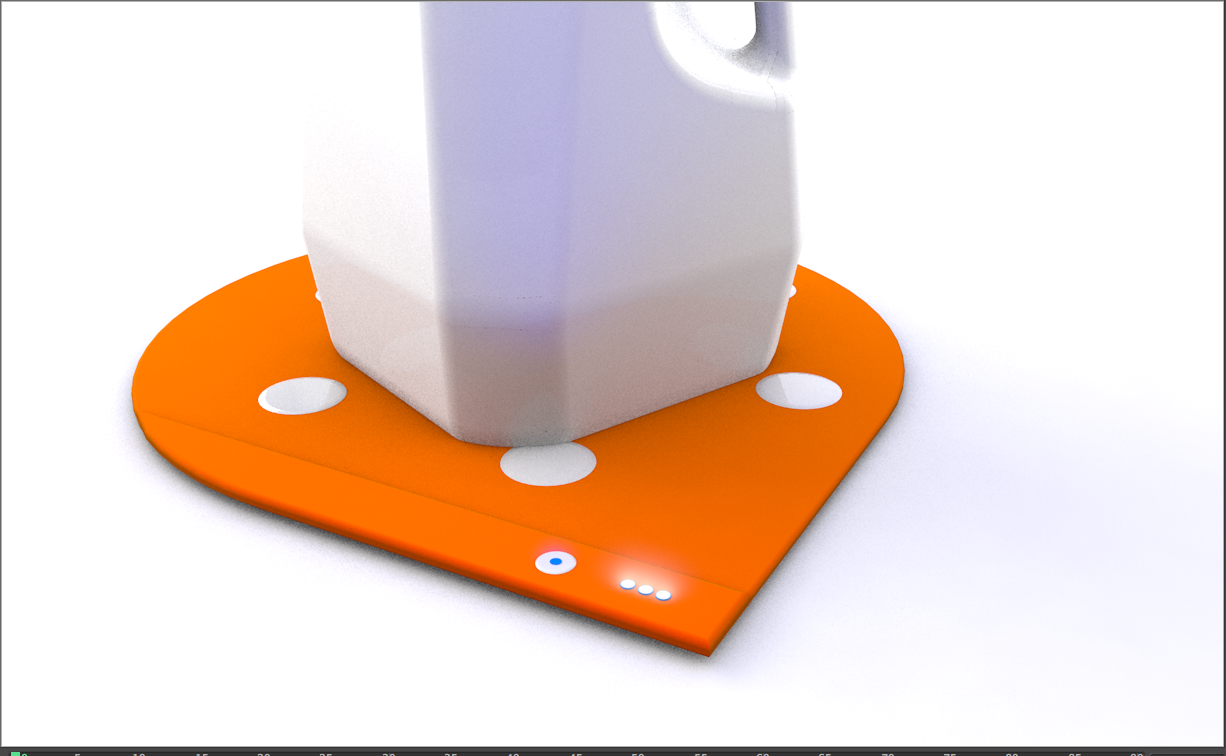

and can you do a zoom in render on the front edge, curious how the interface portion tapers to the main body

Taylor Bernard on December 20, 2013:

oops just dragged it on there and forgot. wanted to be able to see some of the bumps i put on the mat so i just centered it.
ok will change those real quick...

didnt do front shape like you drew in illus. that teardrop shape would make it a bit harder to put the buttons and stuff on. but can do it if you want. lmk

Justin Bernard on December 20, 2013:

nah hold up on teardrop if its tricky, do other things first

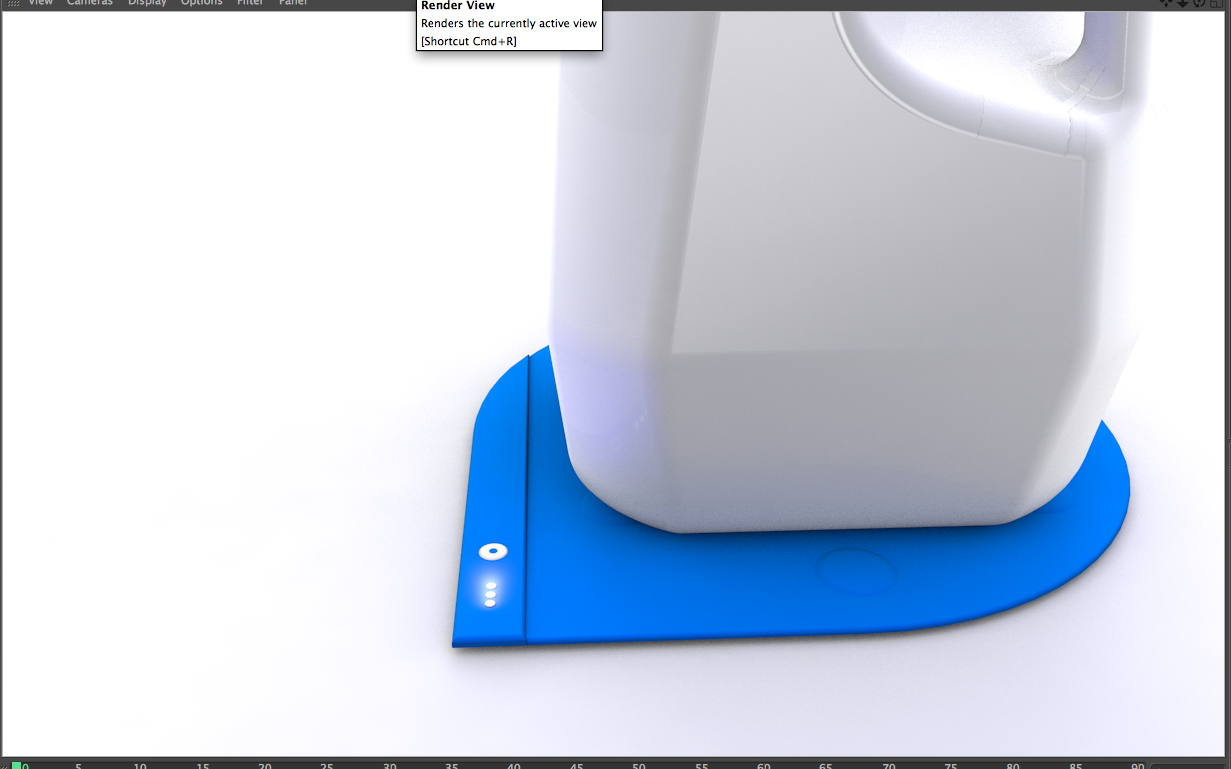

leave the bumps but maybe make them same color as the base

Taylor Bernard on December 20, 2013:

Justin Bernard on December 20, 2013:

looks clean

see if you can find good icon/carton shape we can use, be neat to have some sort of status led on it that was literal shape/profile

Justin Bernard on December 20, 2013:

also do some legit research and figure out dimensions we'd shoot for, so it barely clears a milk jug

make that bad boy more monotone maybe with the white bumps being color matched, see how that looks

can you 'flex' it in c4d, pick it up from one corner to show its rubber?

did you get the arduino stuff i sent back last week?

Taylor Bernard on December 20, 2013:

Taylor Bernard on December 20, 2013:

heres one without jug

Taylor Bernard on December 23, 2013:

Justin Bernard on December 23, 2013:

looks good.

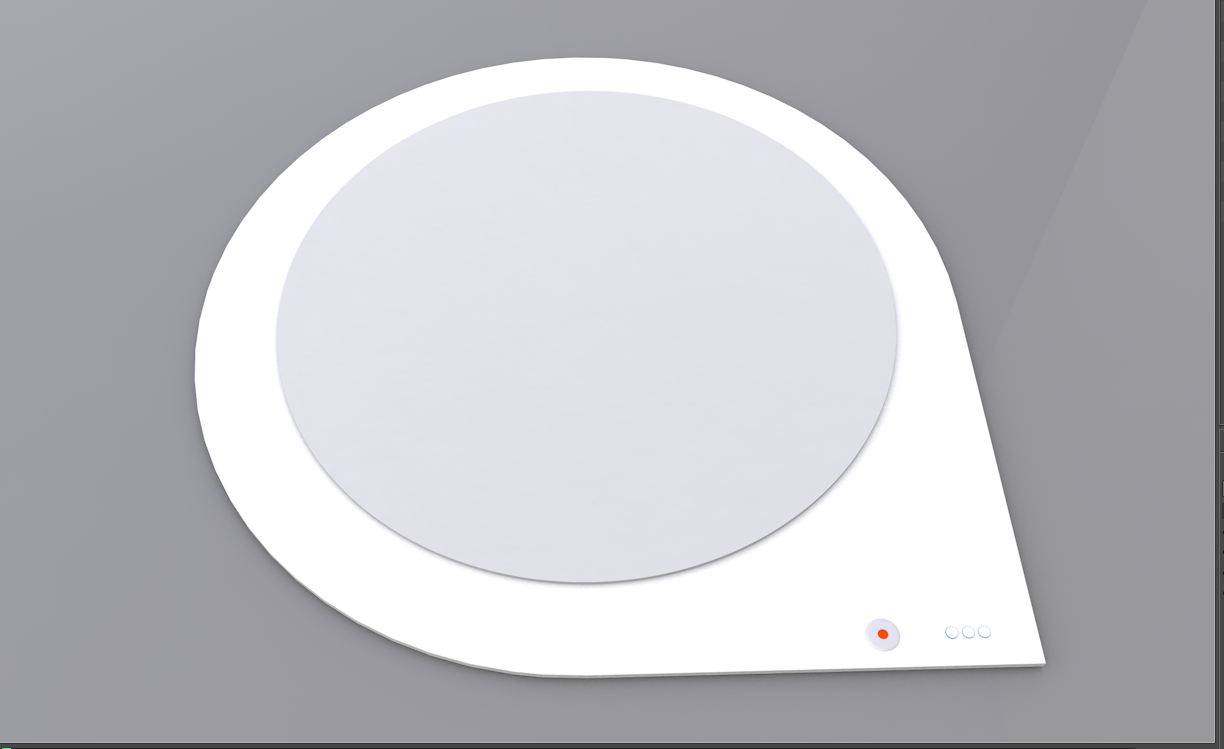

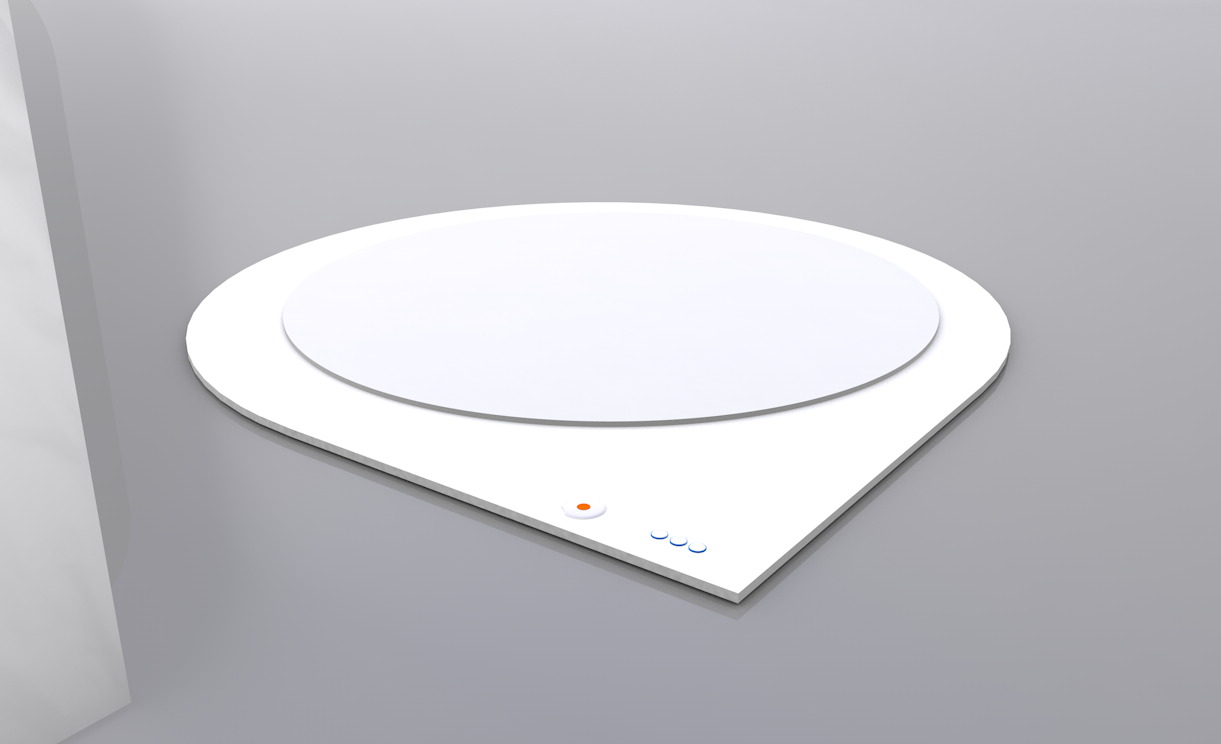

dont need this right now, but on next version of solid body model, how about flip it essentially so the circle plate is on the bottom, so entire top surface can be the scale, plus keep it cleaner looking, would be easier to wipe/clean down/etc.

Taylor Bernard on December 23, 2013:

so have the top be flat with no emboss and it be sitting on a disc under it centered?

Justin Bernard on December 23, 2013:

yeah was thinking the circle portion could be the actual base, then have the pressure sensor on top of it, that way the entire thing is sort of a floating scale...
